Studio Watchdog Management
The "Watchdog" page is used to save Watchdog service connections in Studio, perform connection tests, check running status, open backup drawers, and serve as a target source for uploading and downloading projects from the gateway.
Page entry
Menu path: Studio Web > Watchdog.
| Area or Actions | Instructions |
|---|---|
| Add Gateway Service | Open the Service Configuration drawer. |

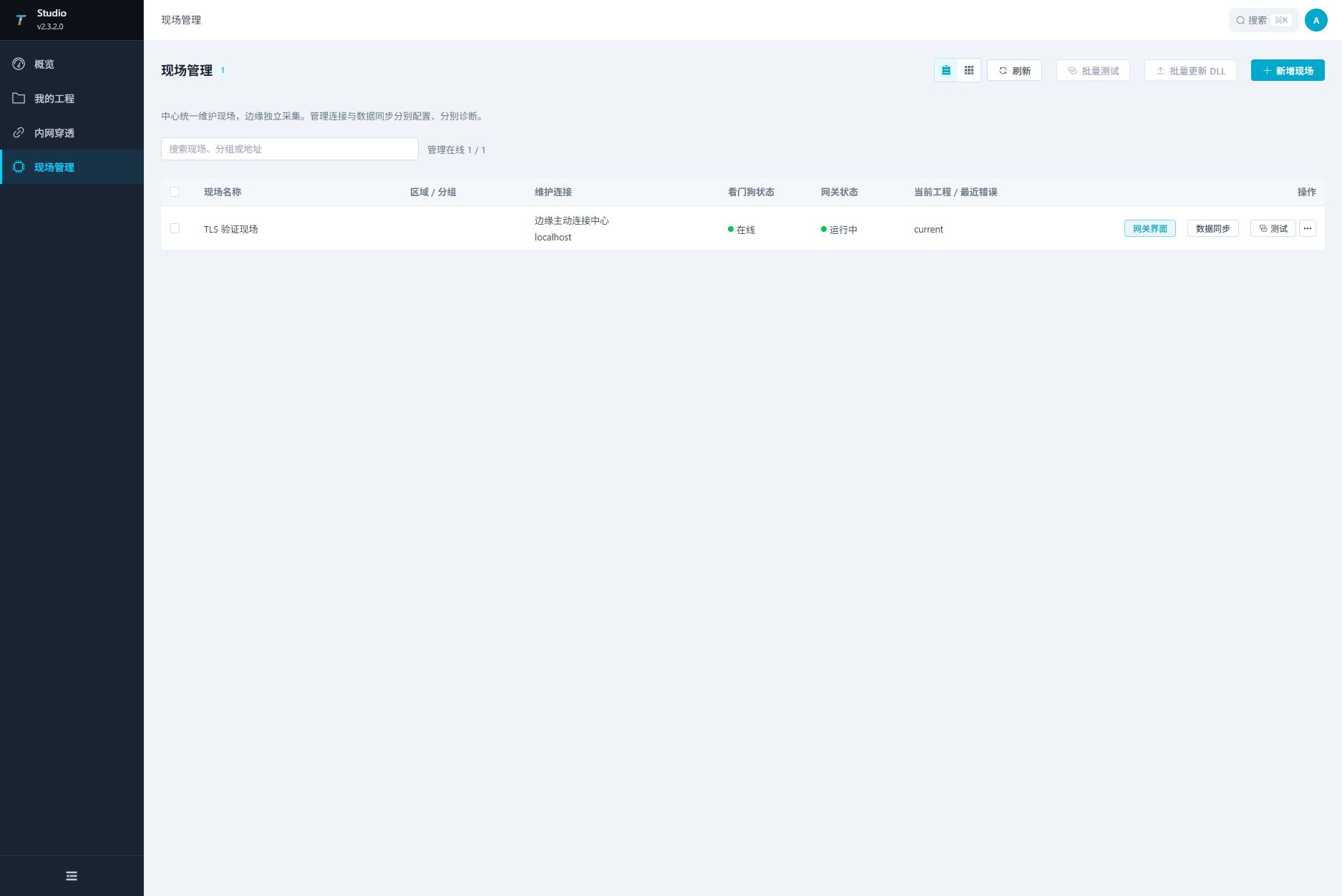

| Card View | Displays service name, address, Watchdog status, and GatewayRuntime status. |
| List View | Displays Watchdog services in a tabular format, suitable for multi-gateway management. |
| Test | Immediately test the connection from Studio to Watchdog. |
| Backup | Open the backup drawer of the target Watchdog. |
| Edit | Change the service name, address, port, username, and password. |
| Delete | Delete the Watchdog connection configuration saved in Studio without deleting items or backups on the target gateway. |
Meaning of Status
| Status | Explanation | Handling Suggestions |
|---|---|---|
| Watchdog Online | Studio can access the Watchdog API and read states. | You can continue uploading projects, downloading projects, or viewing backups. |
| Watchdog offline | Studio cannot access Watchdog services. | Check addresses, ports, firewalls, account passwords, and whether services are running. |
| Gateway Running | Watchdog detects that GatewayRuntime is running. | It is still recommended to back up before uploading or restoring data. |
| Gateway has stopped being online | Watchdog, but GatewayRuntime is not running. | View logs or launch the gateway in the Watchdog Web dashboard. |
| Gateway unknown | Watchdog offline or status read failure. | First, restore the Watchdog connection. |
Add or Edit Gateway Services

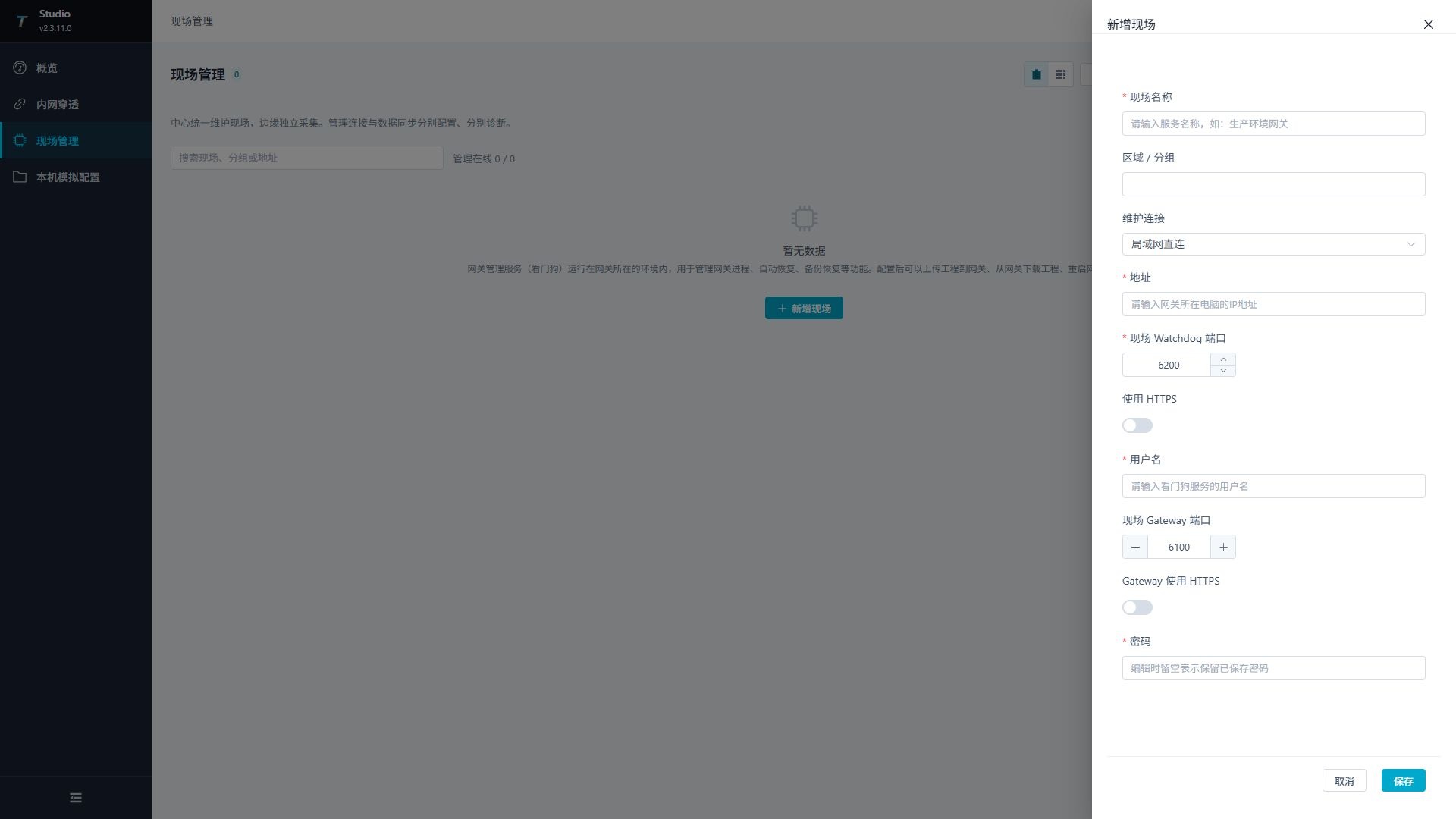

Click "Add Gateway Service," or click Edit in an existing service to open the service configuration drawer.
| Configuration Items | Description |
|---|---|
| Service Name | The name displayed in Studio is recommended to include site or production line information. |
| Service Address | the IP or domain name of the Watchdog service, with the port entered in the "Service Port" section. Regular HTTP IPs are officially supported, for example, entering 192.168.1.20. |
| Service Port | The port used by Studio to access Watchdog Web/API, range 1-65535. Bundled Watchdog commonly used 6200; If the Watchdog port has been modified on site, fill in the actual port. Enter the Watchdog port here, do not enter the GatewayRuntime Web/API port, and do not repeatedly enter the port in the service address. |
| Username | Watchdog login account. |
| Password | Watchdog login password. |
| Save | Add or update connection configurations. |
| Cancel | Close the drawer without saving. |
After saving, it is recommended to click "Test" immediately. A successful test only means Studio can access Watchdog; Whether the target GatewayRuntime can run properly depends on the gateway status and Watchdog logs.
Studio automatically retrieves Watchdog's one-time RSA-OAEP-SHA256 public key challenge, encrypts the saved password, and exchanges it for a Bearer session. Connection testing, status polling, upload/download, and backup management all use Bearer, without the need to configure Basic authentication. If the Watchdog restart causes the session to expire early, Studio will log in again and try again.
Connection Test
| Test Results | Explanation |
|---|---|
| Success | Studio has connected to Watchdog and read version and other status information. |
| Failures | Issues with address, port, network, account password, or Watchdog service status. |
Check in order when tests fail:
- Can the browser or server access
http://<watchdog-address>:<port>? - Can Watchdog Web log in with the same account and password?
- Whether the firewall allows Watchdog ports.
- Whether the Watchdog service is activated.
- If accessed through the tunnel, confirm that both Studio Broker and Watchdog Client have been successfully bound.
Backup Management
Click "Backup" in the Watchdog card or list operation to open the backup drawer.
| Columns or Operation | Instructions |
|---|---|
| Name | Name of the backup file on the target Watchdog. |
| Creation time | Back up creation time. |
| Size | Backup Size. |
| Restore | restore the backup to the target Watchdog current project. |
| Delete | Delete the backup on the target Watchdog. |
Performing backup recovery from Studio produces the same effect as recovery in Watchdog Web, both changing the target gateway project content. Before resuming, please confirm that the target project has a rollback version.
Linking with Project Upload
When uploading a project on the "My Projects" page, the target gateway list comes from the Watchdog service saved on this page.
| Upload fields | Relationship with Watchdog |
|---|---|
| Target gateway | Service configuration saved from the Watchdog page. |
| Publishing Method | "Normal Release" or "AOT Release," affecting the content of the uploaded package and the target runtime requirements. |
| Target environment | needs to match the system and architecture where the target Watchdog operates. |
| Update RUNTIME | will update the target GatewayRuntime program file. |
| Forced restoration of NuGet | Restoring dependencies upon release; Depend on exceptions or switch target environments before use. |
Pre-release recommendations:
- On the "Watchdog" page, click "Test" to confirm Watchdog is online.
- Open the backup drawer or Watchdog Web to create a backup for the target project.
- After uploading, check the results on the dashboard and logs of Watchdog Web.
Integration with Project Download
When clicking "Download from Gateway" on the "My Project" page, the source gateway also comes from the Watchdog service saved on this page.
| Download field | Description |
|---|---|
| After the source gateway | selects the Watchdog service, Studio reads the list of items on that Watchdog. |
| Project List | Select the project you want to download back to Studio. |
| Override existing projects | Whether to overwrite if there is a project with the same name locally. |
Downloading is suitable for field configuration retrieval, fault reproduction, and version comparison. After downloading, verify the project configuration and confirm that the project name did not overwrite the wrong local project.
Division of Labor with Watchdog Web
| Tasks | Recommended Entry |
|---|---|
| Saving Multiple Watchdog Connections | Studio Web > Watchdog |
| Upload Studio Projects | Studio Web > My Projects |
| Download Live Projects to Studio | Studio Web > My Projects |
| Observe Target Run Logs | Watchdog Web > Logs View |
| Create Current Project Backup | Watchdog Web > Backup Management or Studio Watch Dog Backup Drawer |
| Modify Watchdog Running Parameters | Watchdog Web > Settings |
| Configure Watchdog Tunnel Client | Watchdog Web > Tunnel Management |
Frequently Asked Questions
| Phenomena | Handling Suggestions |
|---|---|
| Test failure after adding a service | Check whether the service address is falsely labeled as port, whether the port is filled correctly, and whether the username and password are correct. |
| HTTP IP addresses cannot be saved or accessed | current version allows HTTP IPs. Check whether Watchdog is listening to 0.0.0.0:6200 and enable remote management, standard HTTP permissions, and firewall ports. |
| Connection test returns 401 | Check Watchdog account and password; After Watchdog reboots, Studio logs in again, and a persistent 401 usually means credentials are invalid. |
| Connection test returns 403 | Check Watchdog RemoteManagementEnabled; Upload, recovery, and process control also require RemoteDeploymentEnabled. |
| Watchdog is online but the gateway stops | open the Watchdog web dashboard to view the last errors and logs. |
| Backup drawer is empty | The target Watchdog has no backup, or the backup list failed to read; You can check again on Watchdog Web. |
| Upload the project goal list to empty | Add the service first on the "Watchdog" page and save it. |
| Gateway abnormality after restoring backup | Check Watchdog logs, and restore to the previous backup or re-upload the project if necessary. |
