Complete Modbus, MQTT/SQL, and Rule Engine Demo

This demo starts with a standard Modbus TCP variable, sequentially completing real-time collection, MQTT forwarding, SQLite historical data forwarding, and rule engine threshold checks, verifying the actual results of each segment of the link.

This is not DTU acquisition

This page has channel type TcpClient, GatewayRuntime actively connects to Modbus TCP slave. The device plug-in DTU ID remains empty, without TCP server listening, DTU registration, or DTU ID connection assignment. For DTU access, please refer to DTU Service.

Actual Verification Environment

The screenshots on this page come from a real-time local debugging environment, not an empty form schematic. The test slave alternately returns values between 950 and 1234 per second to simultaneously verify the threshold's untriggered and triggered states.

Project	Actual configuration on this page	Verification Objective
Modbus TCP Slave	127.0.0.1:15030	Receives the real Modbus request from GatewayRuntime and returns 950, 1234
Channels	Demo_Modbus_Channel, TcpClient	GatewayRuntime Actively connects slave
device	Demo_Modbus_Device, ModbusMaster	Execute collection every 1000 ms Execute collection
variables	Demo_Modbus_Value,400001, Int16	Refresh the true collected values online
MQTT Broker	127.0.0.1:18885	Receive topic thingsgateway/demo/modbus Release messages
SQLite	normal_full_demo.sqlite	Write real history records in historyNumberValue
Rule flow	Demo_Modbus_Rule	Judgment Demo_Modbus_Value > 1000
Rule Action	http://127.0.0.1:17502/rule	Receives actual Webhook requests generated by the rule engine.

127.0.0.1 Only applicable to demo environments where GatewayRuntime, simulated slaves, MQTT Broker, and authentication services are on the same computer. Production deployments must be replaced with IP addresses, ports, and database paths accessible to field devices or servers.

1. Generate Regular Modbus Test Data

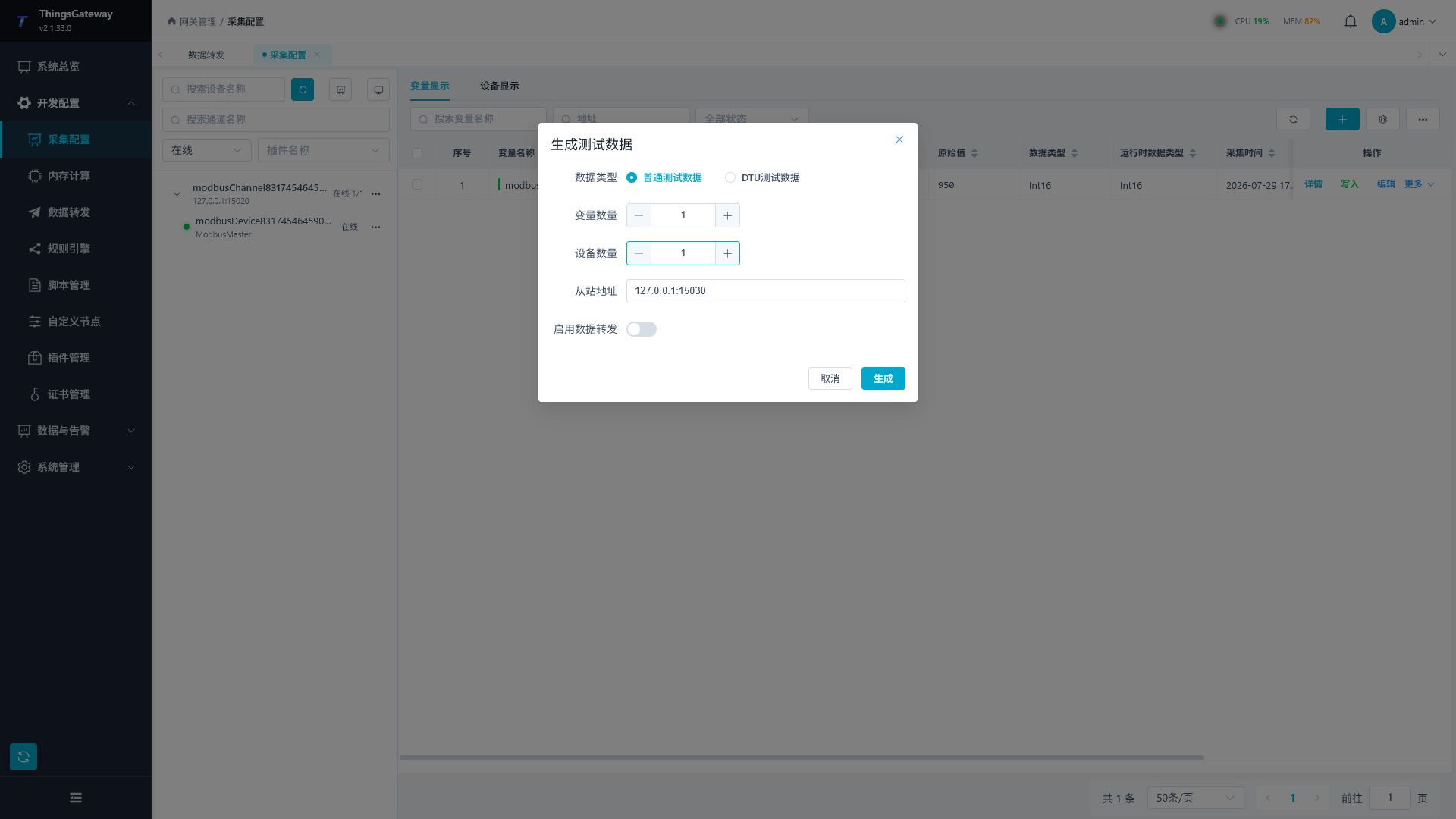

Log in to GatewayRuntime Web, go to "Development Configuration → Collection Configuration," and click "Show more → test data" at the top right of the variable list.

1. Select "Regular Test Data"; do not select "DTU Test Data".
2. Set the number of variables to 1, and the number of devices to 1.
3. Fill in the slave station address 127.0.0.1:15030.
4. Click "Generate" to create a set of standard Modbus TCP channels, devices, and variables.

After generation, you can directly edit the automatically created object. This demo resets object names to Demo_Modbus_Channel,Demo_Modbus_Device, and Demo_Modbus_Value to facilitate accurate references in forwarding and rule flows.

2. Configuring TCP Client Channels

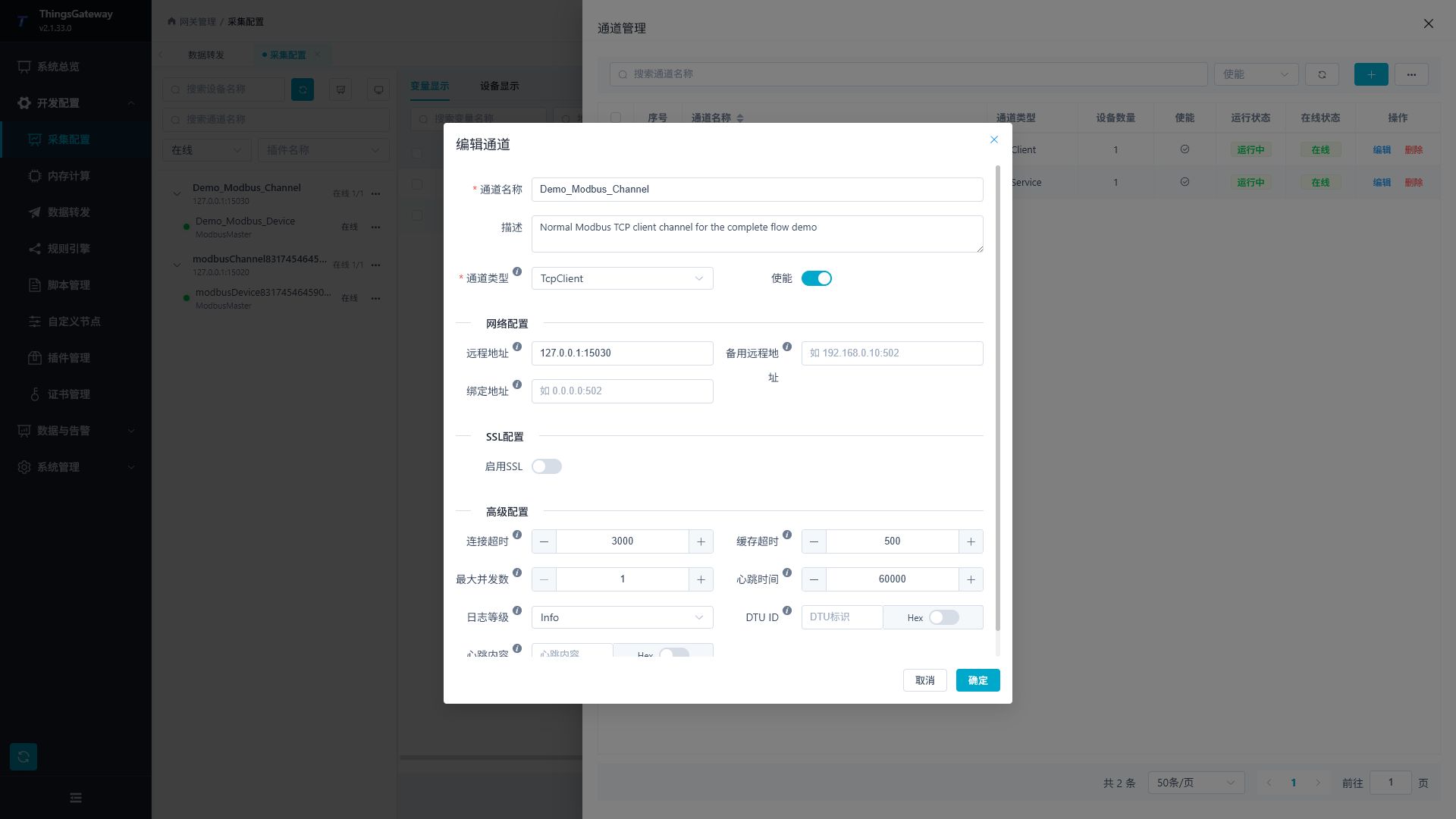

Go to "Collection Configuration → Channel Management" and edit Demo_Modbus_Channel.

Configuration Item	Instance Value on This Page	Description
Channel Name	Demo_Modbus_Channel	Identify this link in collection, logging, and runtime
Channel type	TcpClient	GatewayRuntime actively connects to Modbus slave
Remote address	127.0.0.1:15030	IP and port of Modbus TCP slave
Connection timeout:	3000 ms	Timeout value for establishing and connecting operations
Cache timeout:	500 ms	Protocol data reading and cache window used by package
Maximum concurrency	1	Maintains Modbus request order to avoid abnormal slave concurrency handling
Heart rate	60000 ms	This demo maintains default values

How to confirm it is not a DTU channel

The key feature of ordinary Modbus TCP collection is that the channel type is TcpClient and the "remote address" is entered. DTU mode typically uses TcpService listening addresses, with the DTU actively connecting to the gateway.

3. Configure ModbusMaster Device

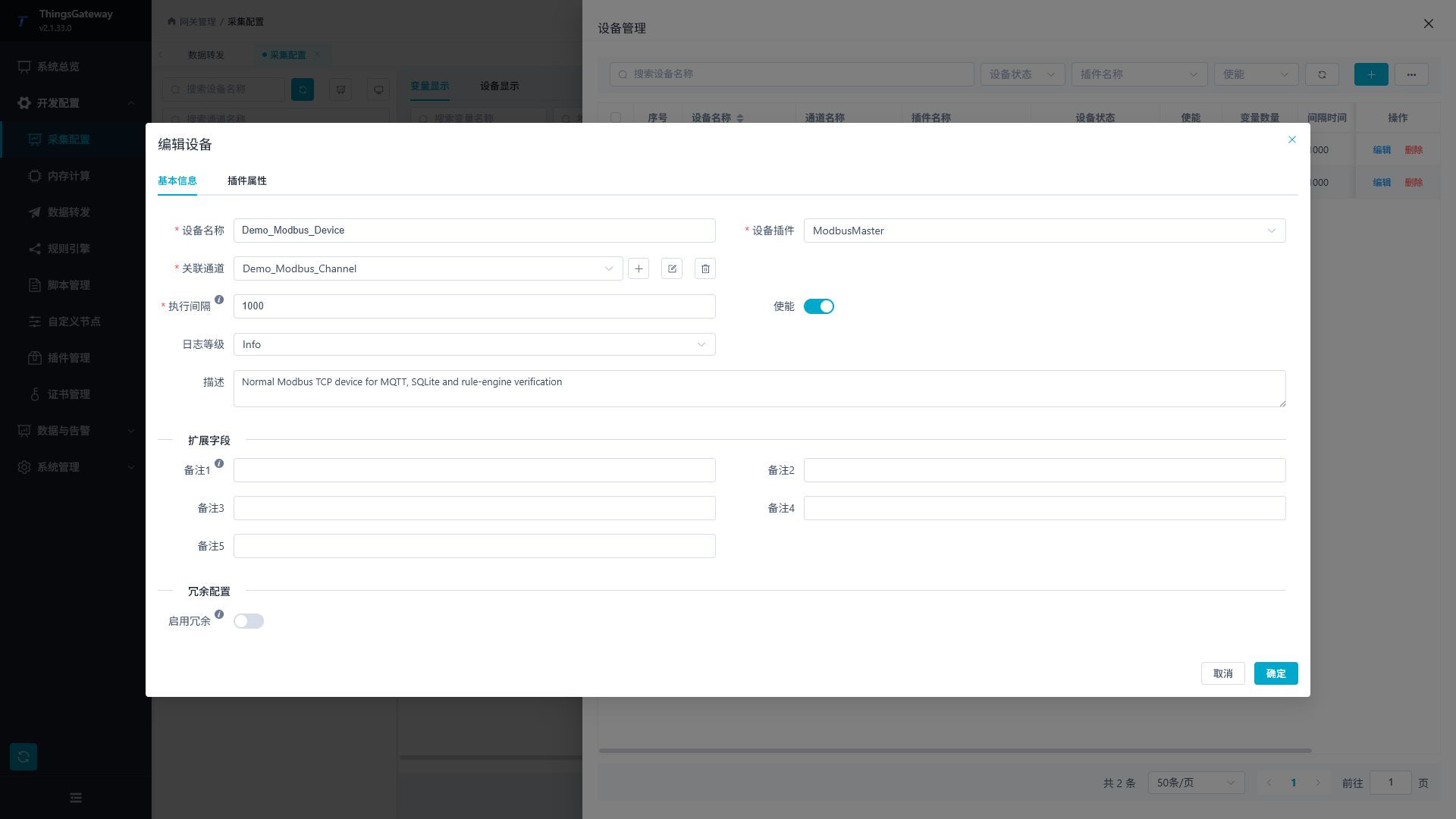

Go to "Collection Configuration → Device Management" and edit Demo_Modbus_Device.

Configuration Items	Instance Values on This Page	Description
Device Name	Demo_Modbus_Device	Forwarding groups and rule nodes filter devices by this name:
Device plugin	ModbusMaster	initiates read requests as Modbus masters
Associate channels	Demo_Modbus_Channel	Connect using the TCP client from the previous step
Execution interval	1000	Execute acquisition once per second
Enable	Enable	Save, then start device runtime

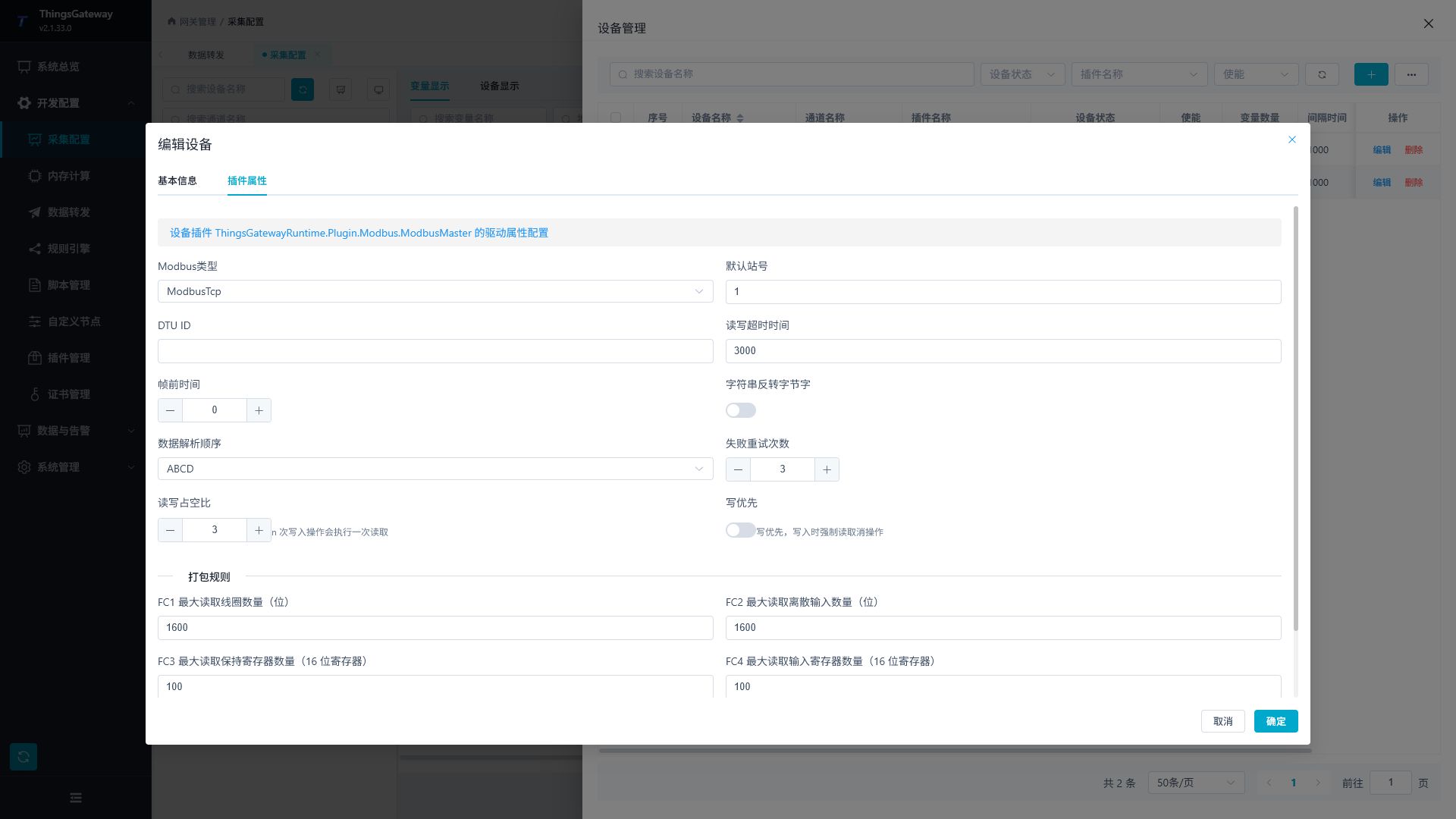

Switch to "Plugin Properties" and confirm use of regular Modbus TCP:

Configuration Items	Instance value on this page	Description
Modbus type	ModbusTcp	Use Modbus TCP packet
Default Station Number	1	Use this value when a variable is not specifically assigned Station Number
DTU ID	Empty	Ordinary TCP client acquisition does not fill in DTU ID
Read/write timeout	3000 ms	Maximum waiting time for a single Modbus request to respond
Data parsing order	ABCD	Multi-register data adjusted byte order by field device

4. Configure variables and verify acquisition

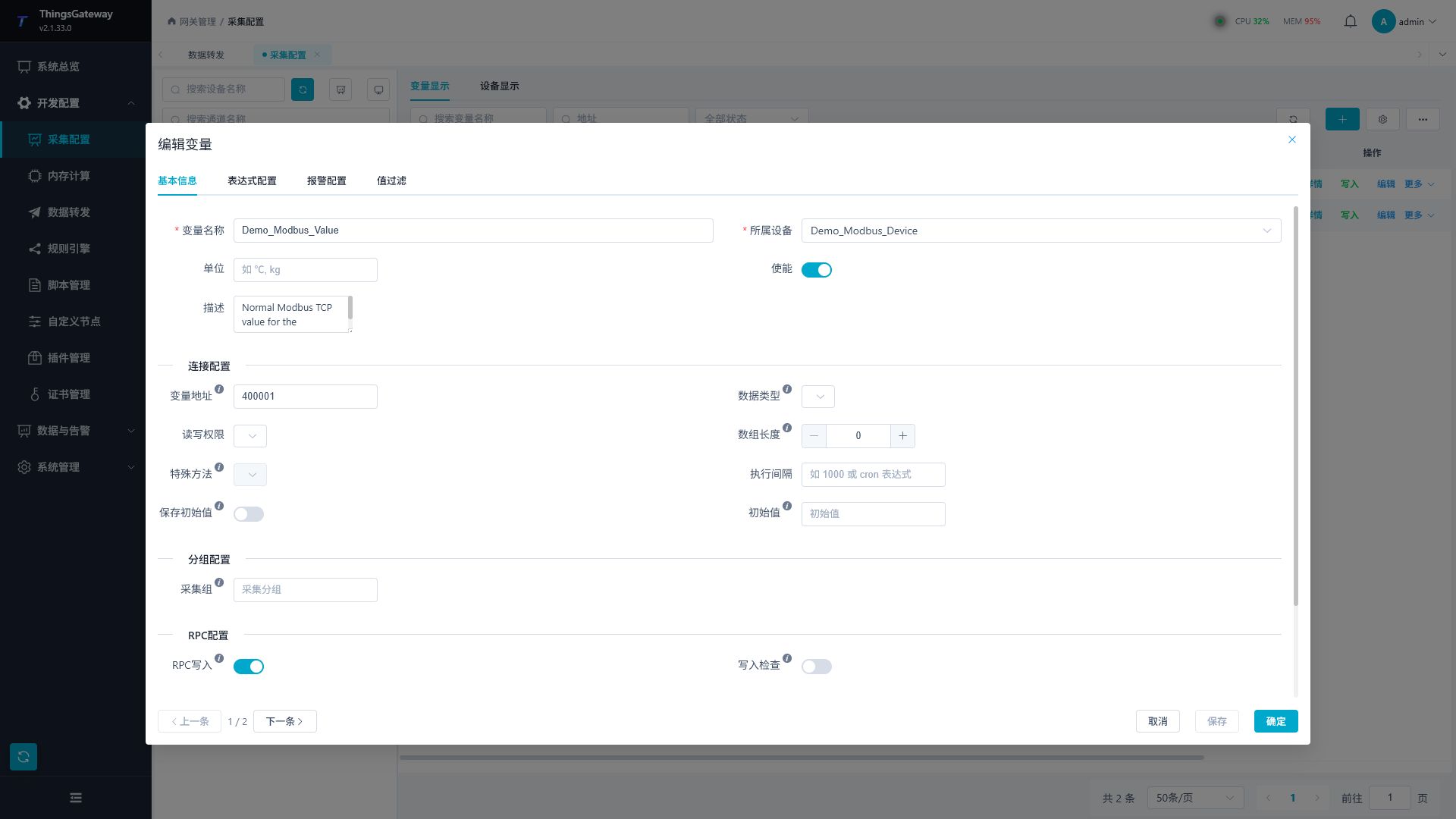

Return "Variable Display" and edit Demo_Modbus_Value.

Configuration Items	Example Values on This Page	Description
Variable Names	Demo_Modbus_Value	Use the name uniformly in MQTT, SQLite, and rule engines
Associated device	Demo_Modbus_Device	ModbusMaster device assigned to the previous step
Variable address	400001	Preserve the first address of the register
Data type	Int16	Retain register from a 16-bit parse value
Read and write permissions	Read and write	This demo maintains generation configuration; When only data is collected, set as read-only
RPC write	Enable	No direct dependencies for this read, forwarding, or rule verification

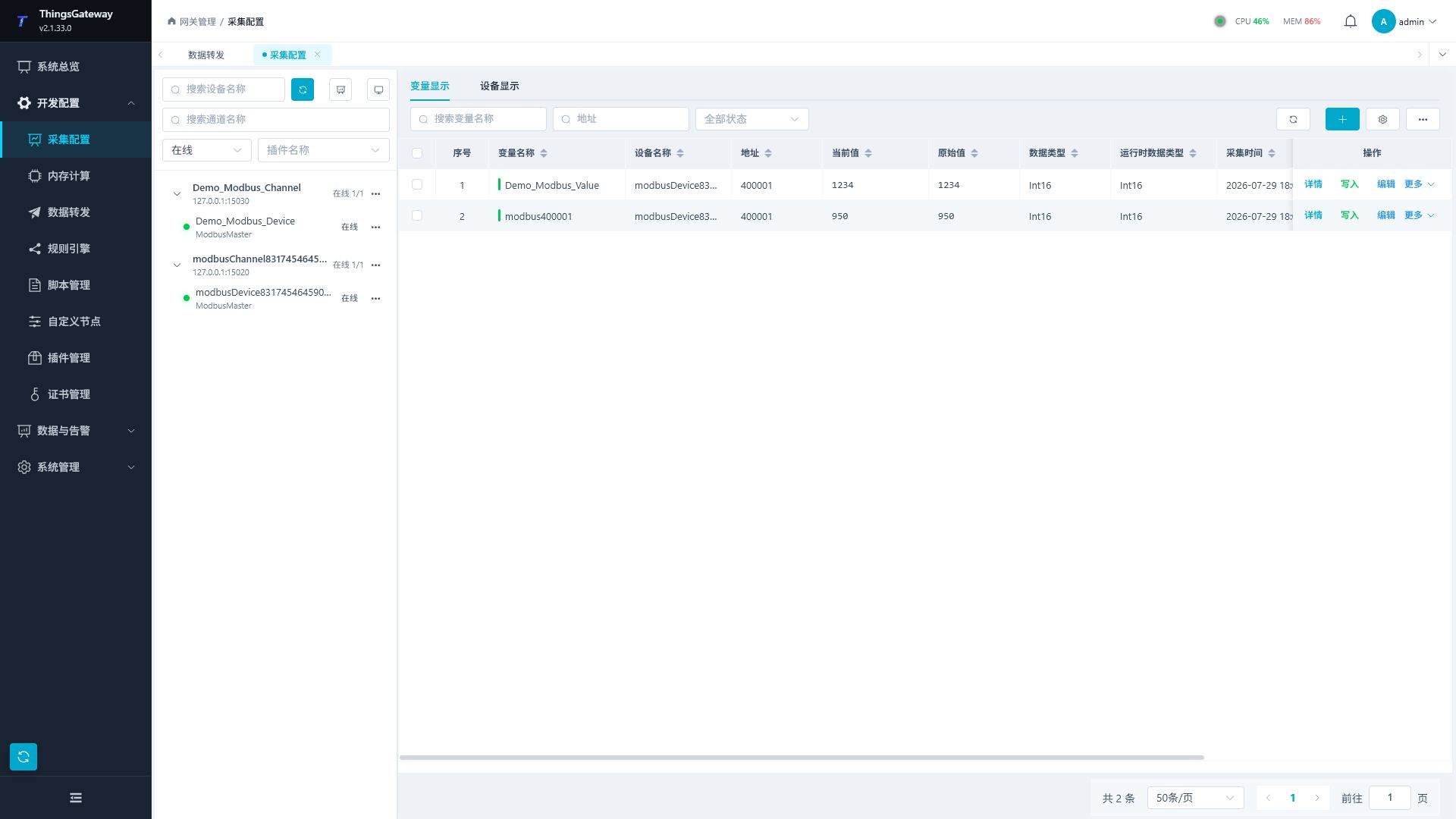

After saving, return to the collection page and accept in the following order:

1. Demo_Modbus_Channel shows "Online 1/1".
2. Demo_Modbus_Device Shows green online status.
3. The current and original values of Demo_Modbus_Value fluctuate continuously between 950 and 1234.
4. Collection time is continuously updated, error messages are empty.

Only after passing the collection status can the forwarding and rule engine be configured. Otherwise, even if subsequent targets appear online, there may be no forwardable data.

5. Create a Dual-Target Data Forwarding Group

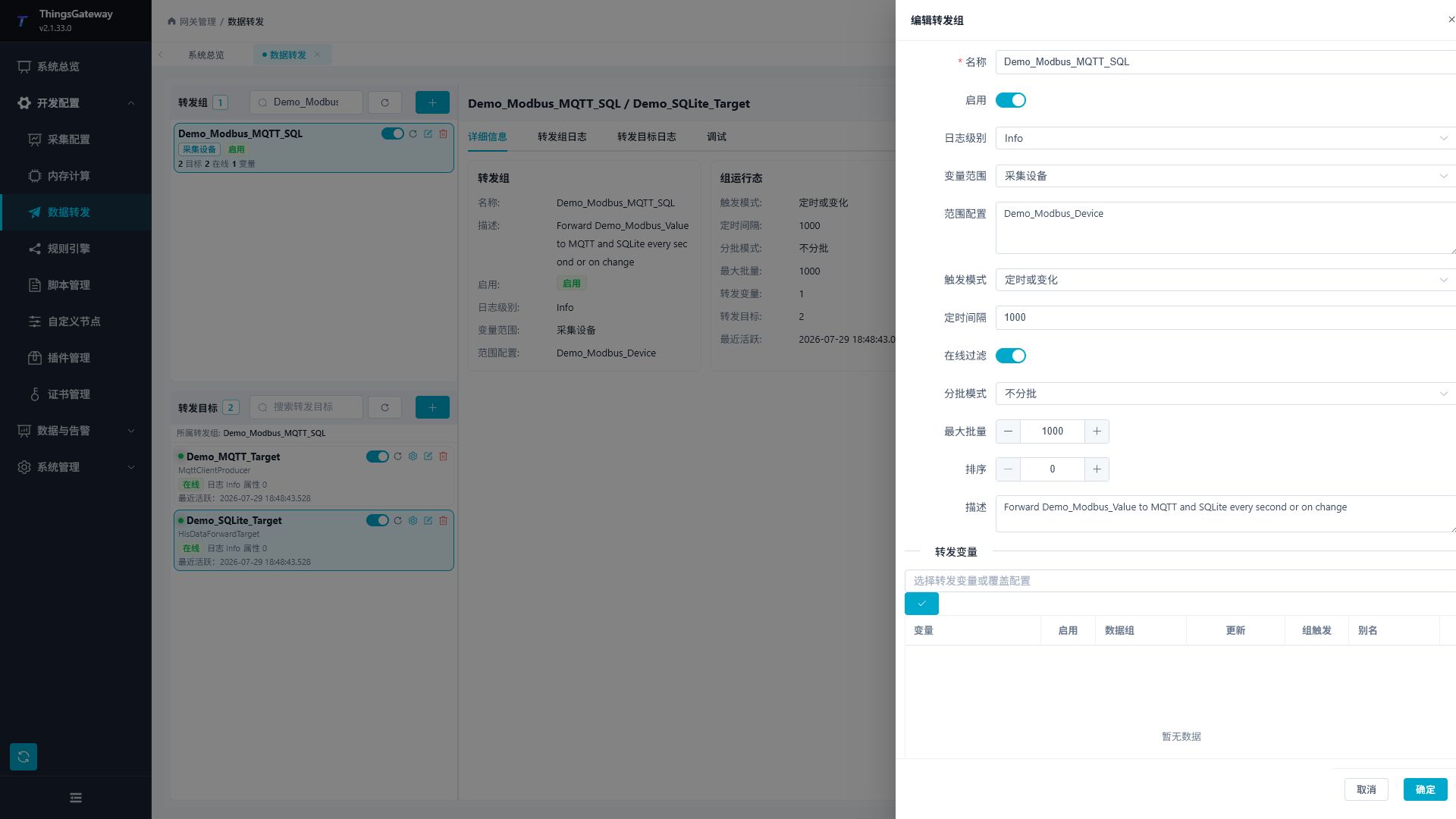

Enter "Development Configuration → Data Forwarding" and add a new forwarding group Demo_Modbus_MQTT_SQL.

Configuration Items	Example values on this page	Description
Variable range	Collection Device	Select forwarding variables from the collection device
Range configuration	Demo_Modbus_Device	Forwarding only this demo Device Data
Trigger Mode	Timer or Change	Immediate trigger for value changes, with timed trigger replenished every second
Fixed Time Interval	1000	Timed Trigger Interval is 1 second
Online Filter	Enable	Forward Only Online Variables
Batch Mode	No batch	Single-variable demo No need to batch
Maximum batch	1000	Maintain default limit

After saving, confirm the forwarding group card shows 1 variable. This demo creates two independent targets within the same group; the online status, logs, and actual data of MQTT and SQLite must be accepted separately.

6. Create an MQTT Client Target

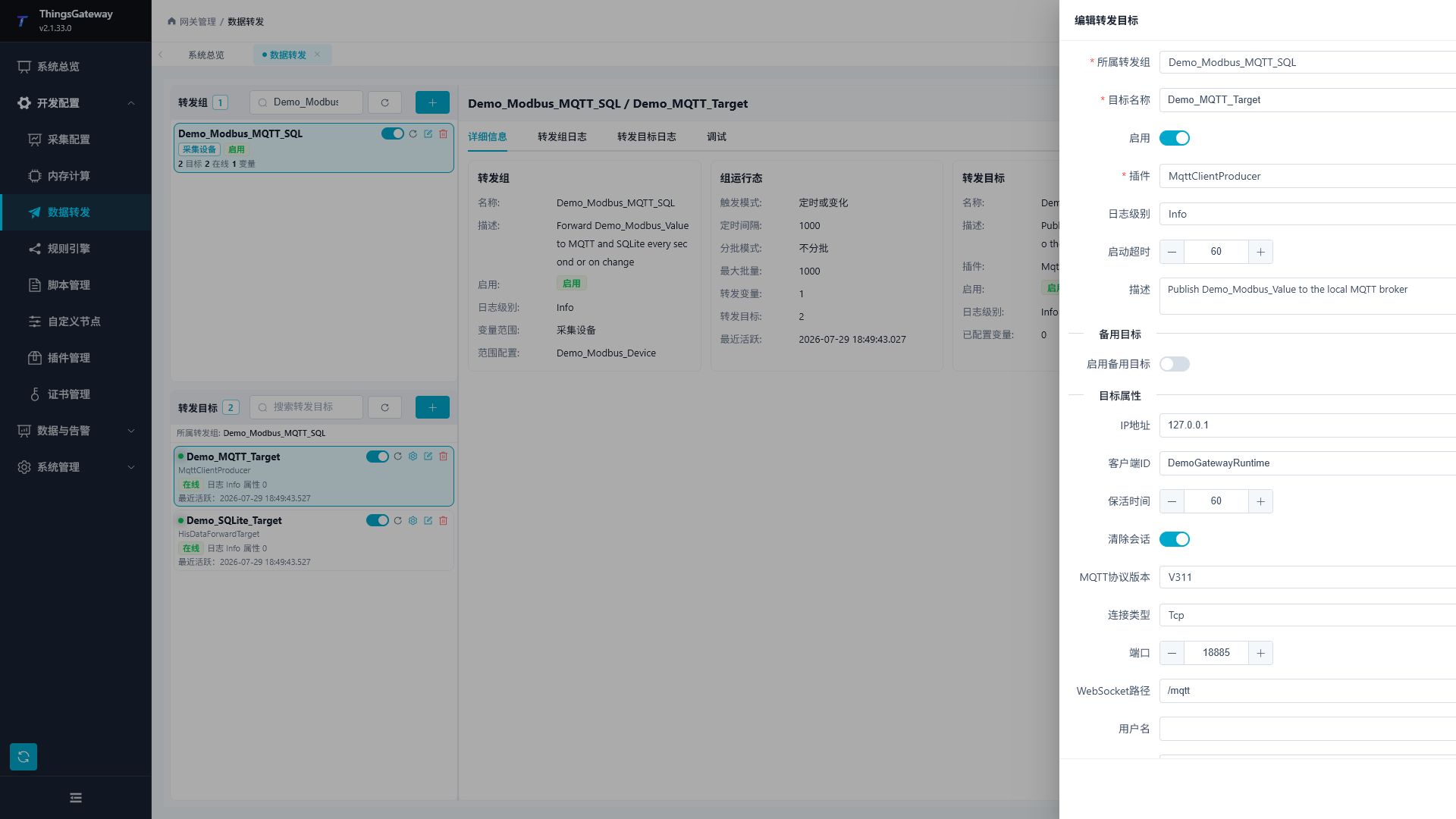

Select Demo_Modbus_MQTT_SQL, click Add in the "Forwarding Target" area, and choose MqttClientProducer.

Configuration Items	Instance Values on This Page	Description
Target Name	Demo_MQTT_Target	Unique name of the MQTT target
IP address	127.0.0.1	local MQTT Broker
Port	18885	TCP port of this Demo Broker
Client ID	DemoGatewayRuntime	Broker to identify the GatewayRuntime client
MQTT protocol version	V311	MQTT 3.1.1
Connection Type	Tcp	Connection Using Ordinary MQTT TCP
QoS Level	AtMostOnce	This demo uses QoS 0
detailed logs	Enable	joint debugging phase to facilitate connection and publishing processes

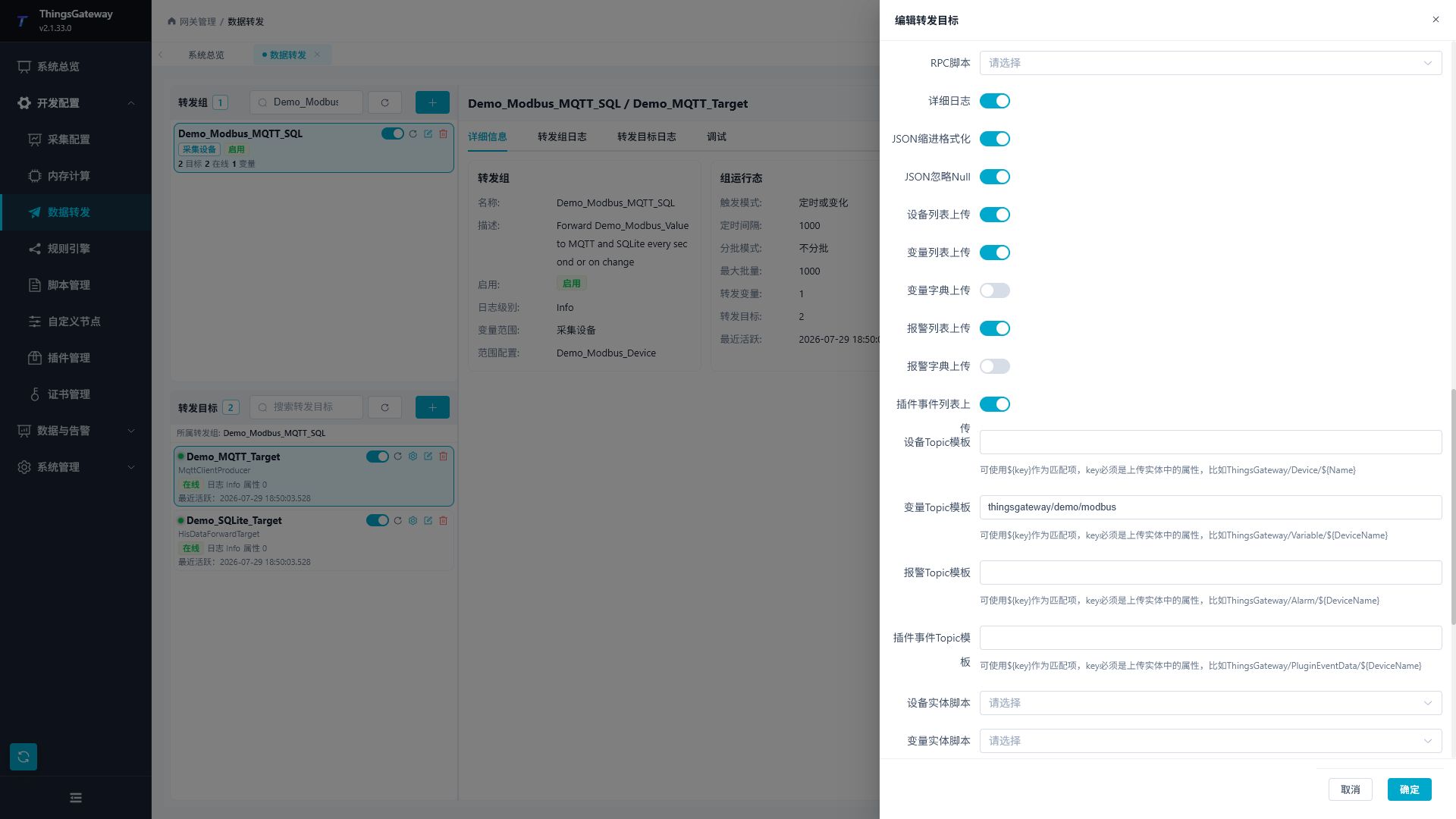

Enter the "Variable Topic Template" as thingsgateway/demo/modbus. This page does not use device names, so all selected variables are posted to a fixed Demo Topic.

After saving, wait for the target card to display "Online". The message actually received by the broker includes the following key data:

[
  {
    "Name": "Demo_Modbus_Value",
    "DeviceName": "Demo_Modbus_Device",
    "Value": 1234,
    "IsOnline": true,
    "ChannelName": "Demo_Modbus_Channel",
    "RegisterAddress": "400001",
    "DataType": "Int16"
  }
]

In the production environment, username, password, TLS certificate, QoS, message retention, and offline caching should be entered according to the Broker's security policy. Do not directly copy the server's unauthenticated parameters.

7. Create the SQLite Historical Data Target

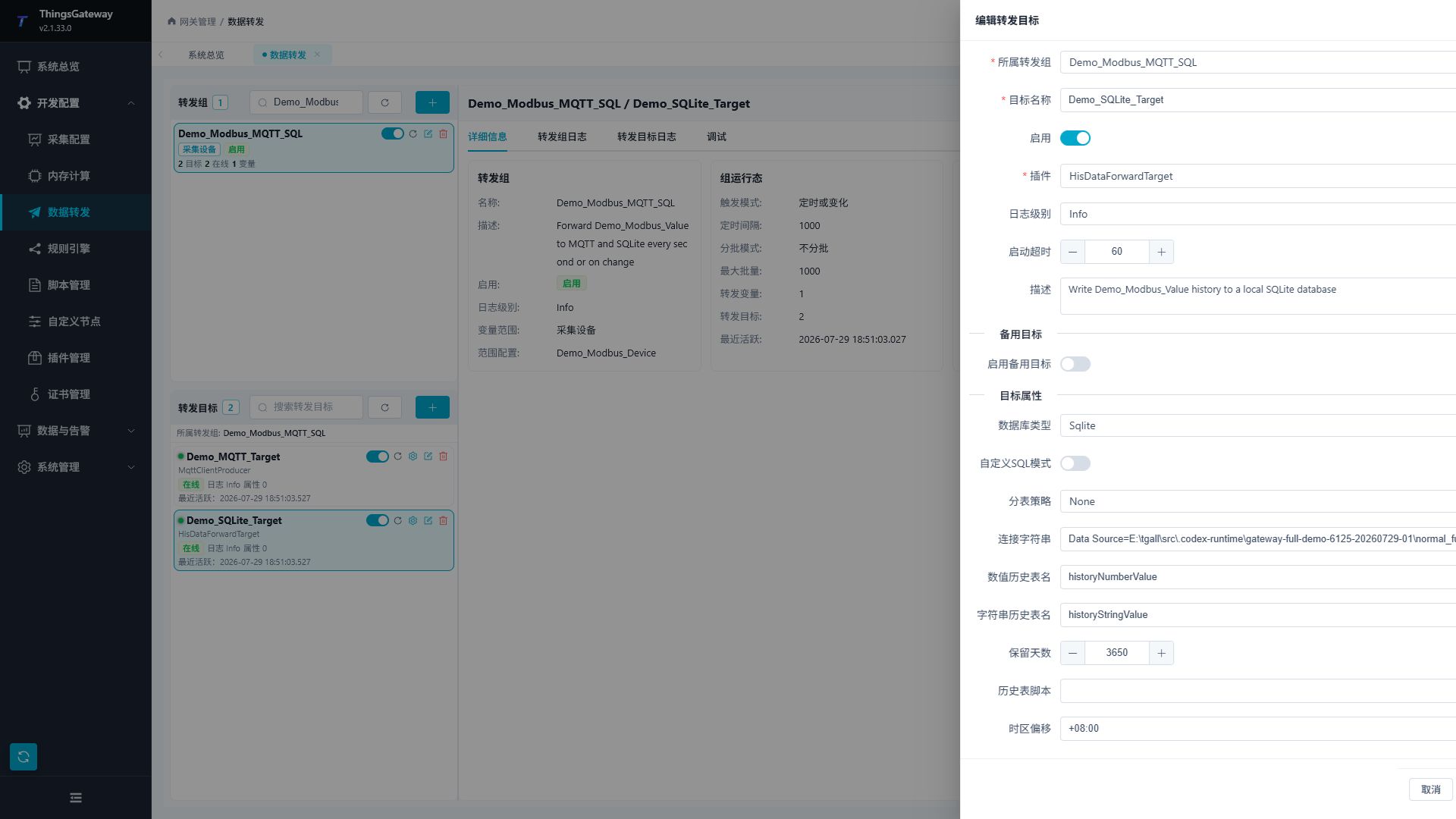

C ontinue to add new targets in the same forwarding group, select HisDataForwardTarget, and choose Sqlite database type.

Configuration Items	Instance Value on This Page	Description
Object Name	Demo_SQLite_Target	Unique Name of SQLite Target
Database Type	Sqlite	Validate with Local SQLite File SQL Forwarding
Concatenate string	Data Source=E:\tgall\src\.codex-runtime\gateway-full-demo-6125-20260729-01\normal_full_demo.sqlite	For this actual verification of the file path, the production environment must replace
numeric historical table_name	historyNumberValue	numeric variable written to the table
string historical table_name	historyStringValue	String variable written to the table
Time zone offset	+08:00	Save according to current project time zone
Forced insert	Enable	Demo for continuous observation of new records
Default sampling strategy	Change	Generate history when variable changes

Save and wait for Demo_SQLite_Target to display "Online". The actual historyNumberValue record written this time includes fields such as VariableId,DeviceName,VariableName,Value,CollectTime, IsOnline, and CreateTime.

Methods to replace SQL forwarding

When writing to MySQL, PostgreSQL, or SQL Server, still use the historical data target, switch the "database type," and fill in the corresponding connection string. Table names, sharding strategies, sampling strategies, and historical retention policies should be reconfirmed according to the project database specifications.

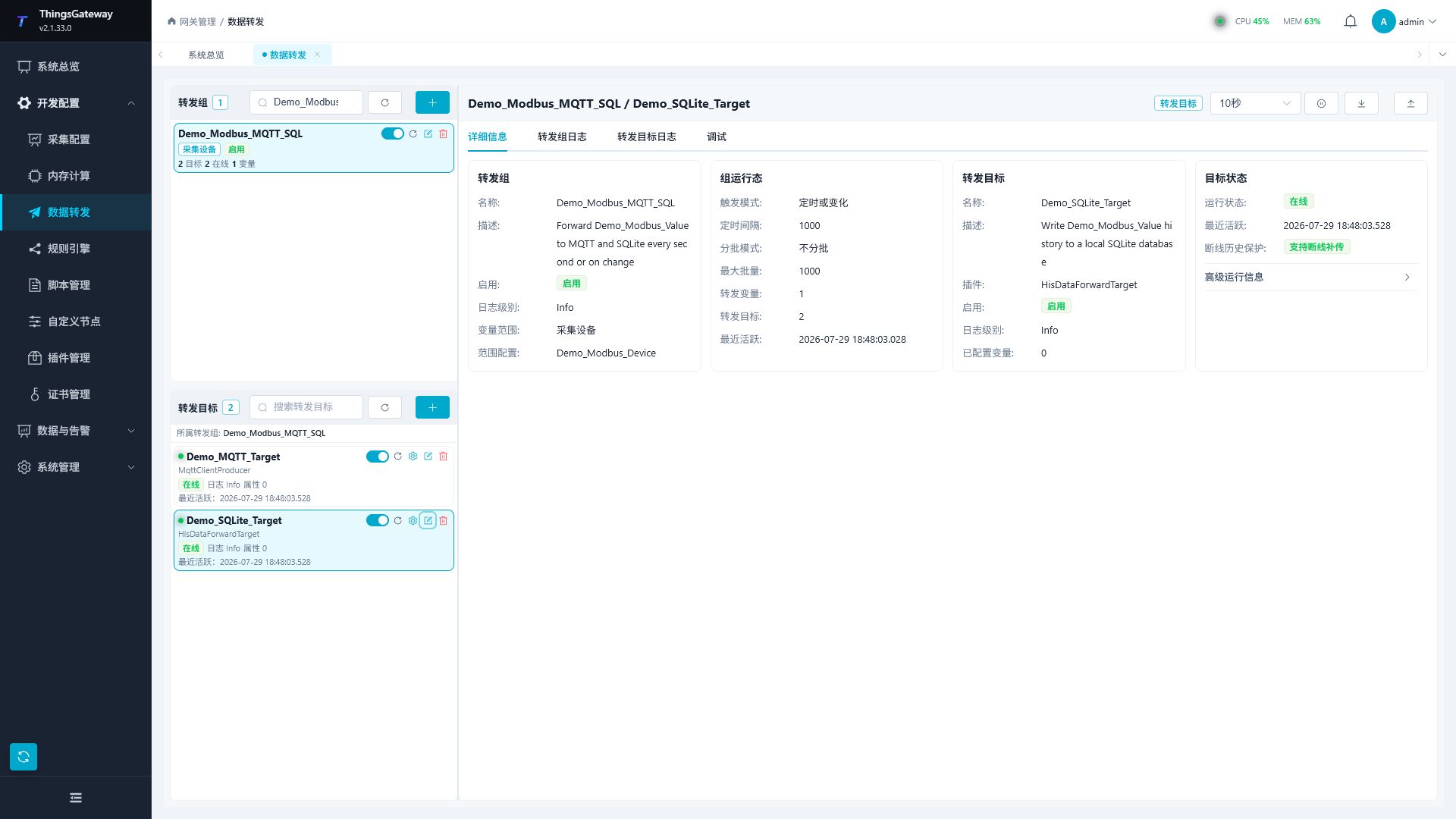

8. Separately Accept MQTT and SQLite Forwarding

Return to the data forwarding details page and confirm:

1. The forwarded group shows 2 target,2 online, 1 variable.
2. Demo_MQTT_Target and Demo_SQLite_Target both show "online."
3. The recent activity times of the repost group and two targets are continuously updated.

Target online only indicates the target runtime state is started and cannot replace result acceptance. This page also uses the real receiver and database queries to simultaneously check two types of results: the MQTT Topic shows Demo_Modbus_Value, and the SQLite historyNumberValue shows the actual value of the same variable.

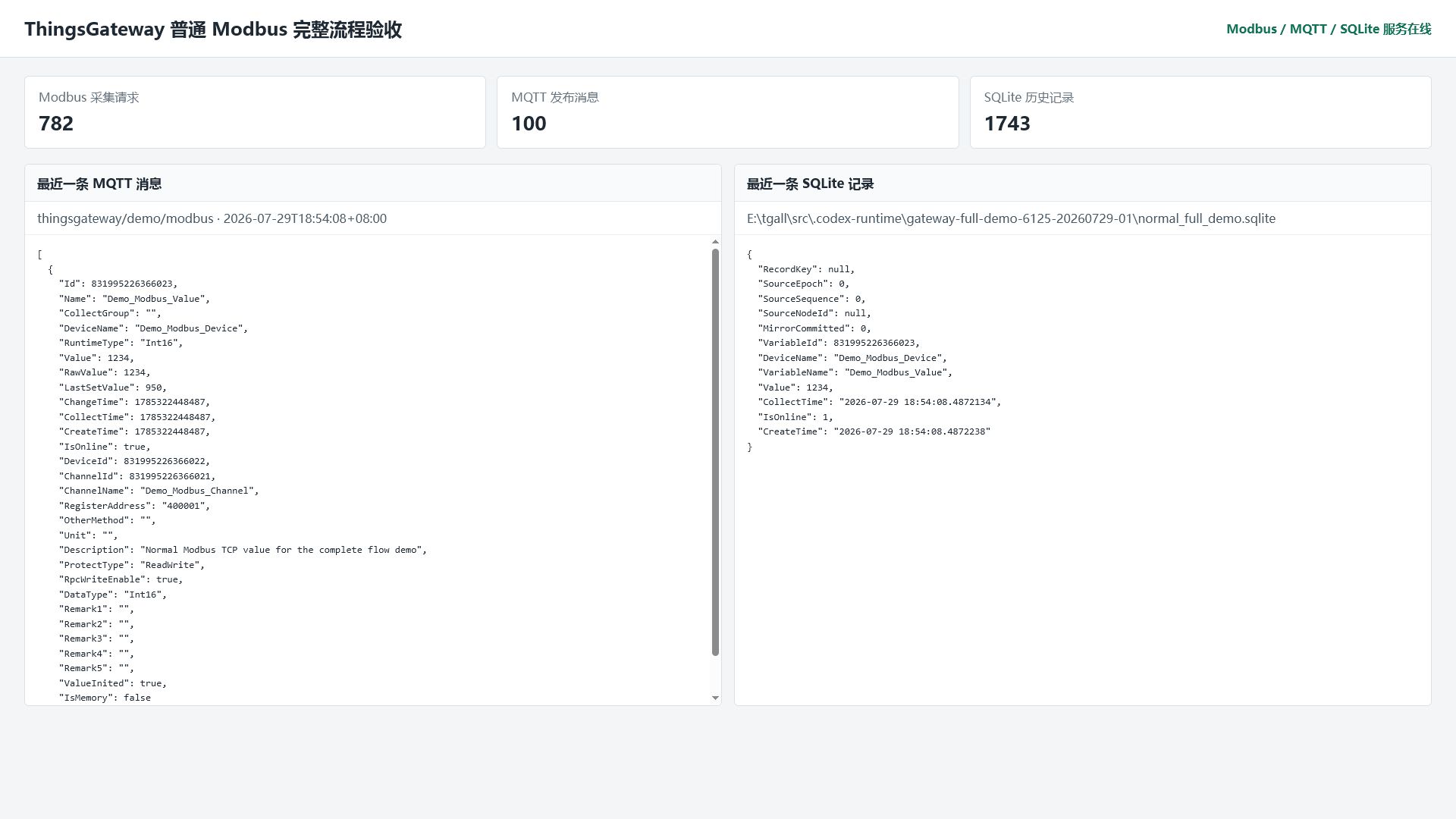

Check Item	Acceptance Criteria
Modbus Requests	The request count continues to increase, proving that GatewayRuntime is reading from the standard Modbus TCP slave.
MQTT message from a regular Modbus TCP slave	message count greater than 0, topic is thingsgateway/demo/modbus
MQTT content	contains Demo_Modbus_Value, Demo_Modbus_Device, and actual values 950 or 1234
SQLite records	historyNumberValue Records continuously increasing
SQLite content	The most recent record VariableName is Demo_Modbus_Value , the value matches the value collected at the same time

9. Configure the Rule Engine

Enter the "Development Configuration → Rule Engine" and create or open Process Demo_Modbus_Rule. This demo uses three nodes:

1. "Variable notification rules" listen for changes in Demo_Modbus_Value.
2. "Threshold trigger" checks whether the variable value is greater than 1000.
3. "Webhook push" sends the rule data to the local acceptance end.

The connection relationships are as follows:

Start	End Point	Purpose
Variable Notification Rules Result	Threshold Trigger Input	Send real-time values to threshold judgment
Variable Notification Rules VariableBasicData	Webhook push Data	Send complete variable objects into rule actions

Webhook role

MQTT and SQLite on this page are the two data forwarding targets in the "Data Forwarding" page. Webhooks are only used to demonstrate rule engine actions; they are not the data forwarding examples on this page, nor can they replace MQTT or SQL object acceptance.

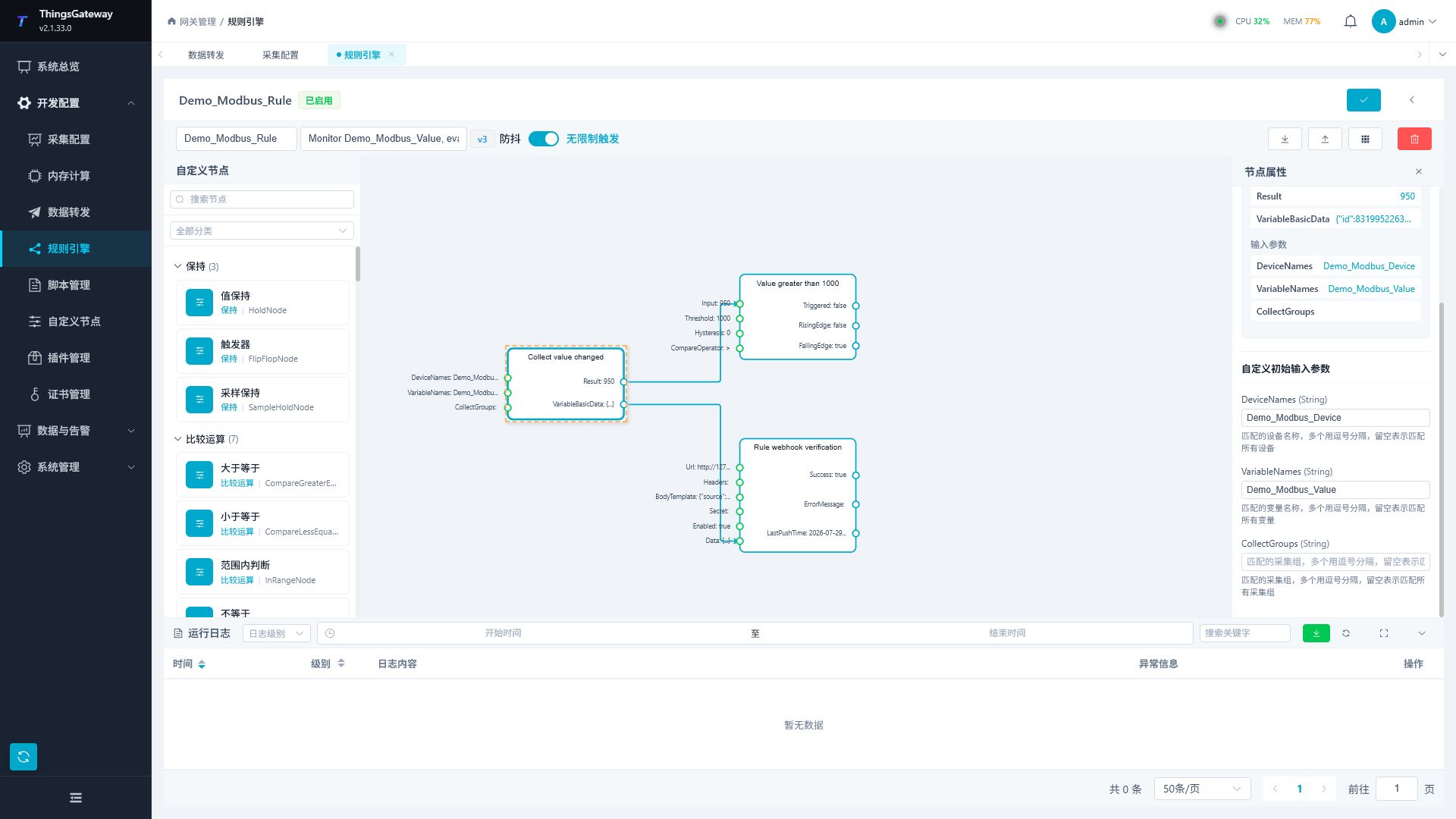

Configure variable notification nodes

Select the "variable notification rule" node and fill in the following initial input parameters:

parameters	instance value	description
DeviceNames	Demo_Modbus_Device	only matches the demo collection device
VariableNames	Demo_Modbus_Value	only matches the demo variable
CollectGroups	Empty	No additional filtering by collection group

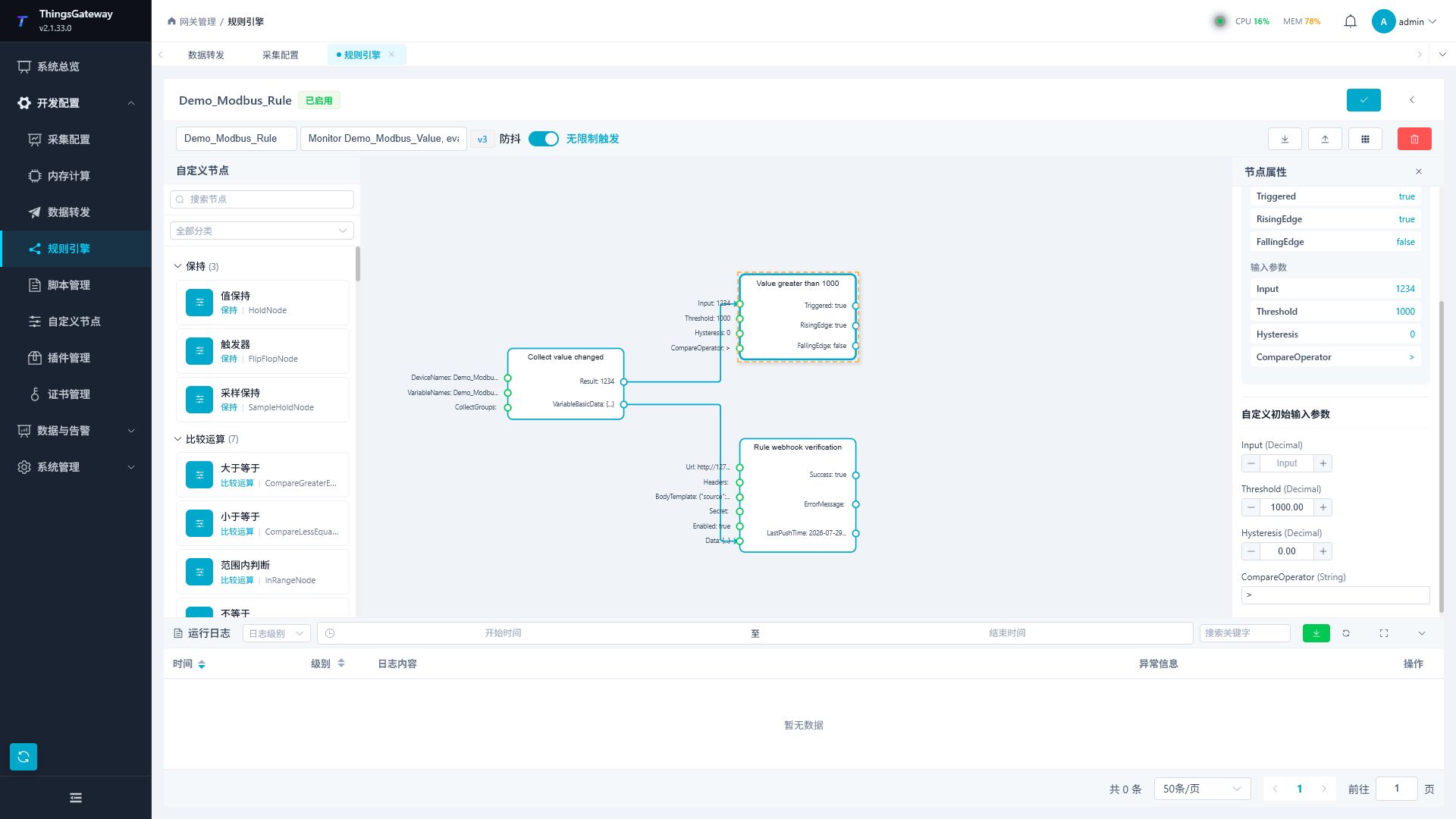

Configure threshold nodes

Select the "threshold trigger" node and set:

parameters	instance values	descriptions
Threshold	1000	threshold
Hysteresis	0	This demo does not use backlash
CompareOperator	>	Triggered when input value exceeds 1000

When input is 1234, actual running value shows Triggered=true,RisingEdge=true; When the input restores to 950, it displays Triggered=false, FallingEdge=true.

Configure Rule Action Nodes

Select the "Webhook Push" node and fill in the following parameters:

Parameter	Instance value	Description
Url	http://127.0.0.1:17502/rule	Local rule acceptance service address
Enabled	Enable	Enable rule action
Data	Connect variable notification node VariableBasicData	Pass current variable object

Request body template as follows:

{"source":"rule-engine","device":"{{DeviceName}}","variable":"{{Name}}","value":{{Value}}}

A t actual runtime, nodes show Success=true, ErrorMessage empty, and continuously update LastPushTime.

After saving and enabling the process, the complete canvas is as follows. Real-time parameters on nodes refresh following the Modbus values.

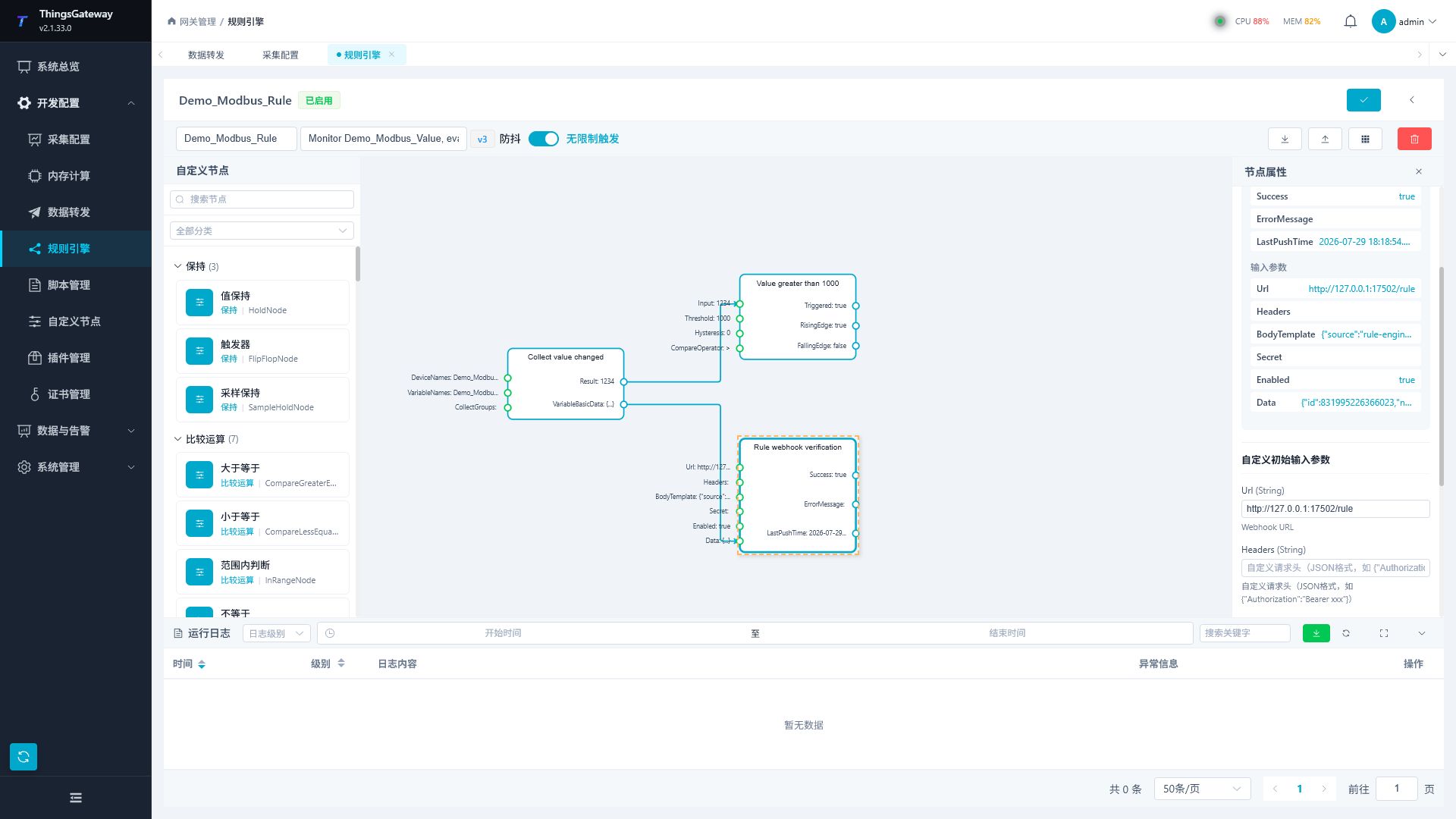

The actual execution result of the rule action under high value is as follows: input 1234, threshold check triggered, Webhook action returns successfully.

10. Complete Acceptance Checklist

Accept according to the sequence of the link, without skipping the prerequisites:

Stage	Results that must be met
Ordinary Modbus channel	TcpClient online, remote address points to the real slave station, no DTU ID is filled in
Modbus device	ModbusMaster online, execution interval remains active
variable acquisition	Demo_Modbus_Value at 950. Refresh between 1234, collection time updated with no errors
MQTT target	target online, broker actually receives correct topic and variable JSON
SQLite target	target online, historyNumberValue Actual new record with correct value
rule low value	Enter 950, Triggered=false When the falling edge switches, FallingEdge=true
Rule high value	Enter 1234, Triggered=true, when the rising edge switches, RisingEdge=true
rule action	Success=true, ErrorMessage is empty, receiver receives /rule Request

Production Environment Replacement Item

Demo Configuration	Production Environment Requirements
127.0.0.1:15030	Replace with PLC, Instrument, Protocol Gateway, or Real Modbus TCP Slave Address
Single Variable 400001	Import all variables as formal point tables and verify address, data type, byte order, and read/write permissions
MQTT 127.0.0.1:18885	Replace with formal Broker, configure authentication, TLS, QoS, topic specifications, and offline caching
Local SQLite file	Select formal database, table structure, sharding, and retention policies based on capacity and query requirements
Threshold 1000	Set thresholds and tolerances according to process meaning, Edge triggering and anti-shake strategies
Replace native Webhook	with MES, alert platform, notification service, or other formal rule action addresses

Troubleshooting

Phenomena	Focus on checking
Channel offline	Test slave IP/port from GatewayRuntime host; Confirm the channel is TcpClient, remote address is not a bound address
Device online but variable abnormal	Verify station number, function code address format, data type, byte order, timeout, and slave return packet
No variables in the forwarding group	Confirm the variable range is "Collection Device," with the range configuration exactly matching the Demo_Modbus_Device name
MQTT target offline	Check Broker listening ports, client ID conflicts, authentication, TLS, Protocol version and target logs
MQTT online but no messages	Check forwarding group trigger patterns, online filtering, variable counts, and topic templates, and verify real subscriptions on the broker side
SQLite target offline	Check connection strings, directory write permissions, database types, and historical table names
SQLite online but no records	Check sampling policies, forced inserts, variable data types, and recent activity time of forwarding groups
No input on rule nodes	Check DeviceNames, VariableNames case and spaces to confirm variable changes
Thresholds never triggered	Check input lines, thresholds, comparators, value types, and real-time Input Value
Webhook Success=false	Check URL, receiving service, request body template, network policy, and node ErrorMessage

Related documentation

• Collection configuration - Complete instructions for channel, device, and variable operation
• Data forwarding - Forwarding groups, targets, logs, and debugging methods
• Rule engine - Nodes, connections Input/Output, and Process Operation Instructions
• Device Debugging - Protocol Read/Write and Variable Joint Debugging Methods
• DTU Service - Independent access method for DTU active connection to GatewayRuntime
