Data Query

Data query is used to view data written to GatewayRuntime as real-time data targets (stored as current values) and historical data targets (stored by time). The page is divided into tabs "Real-time Data" and "Historical Data," suitable for operations and maintenance personnel to confirm collected values, forward inventory results, and historical trends.

First Look at Terms

Terms	On-site Understanding
Real-time data target	The storage target for each variable's latest value, similar to a current-value table.
Historical data target	A target that records variable values over time for trends, traceability, and export.
Custom SQL wide table	A history table whose columns are defined for the project rather than using the standard variable columns.
Forwarding target	The place where data is written. Data Query reads from the forwarding target; it does not read the PLC again.
Variable ID	The unique number of the variable within the system. After renaming variables, IDs can still be used for precise filtering.
Collection time / update time	Collection time is when the gateway obtains the variable value. Update time is when the target record is written or updated.

Function Entry

After logging into GatewayRuntime Web, click the menu on the left "Data and Alerts → Data Query".

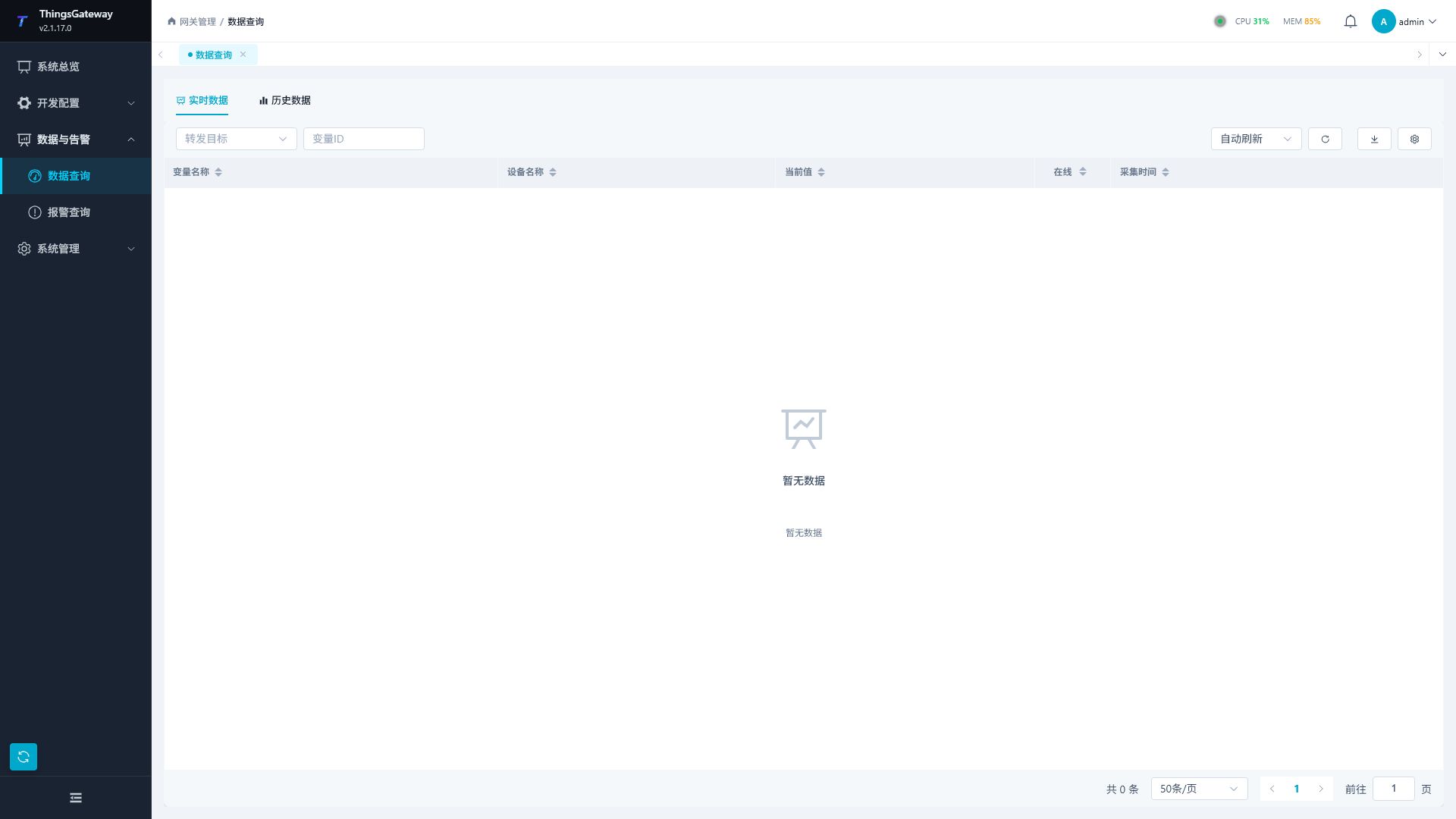

Page Structure

Tabs	Description
Real-time Data	Query the current variable value in the real-time data objective.
Historical Data	Query historical data objectives or custom history in SQL wide tables, with support for table and chart views.

The real-time and historical targets come from the corresponding targets configured in Data Forwarding. If no target is configured or the target has not written data, the page shows “No data”.

Confirmation Before Querying

The data query page views "data already written by the data forwarding target," not directly re-read from the PLC. If no data can be found on site, first confirm that the data link is open before determining the query conditions.

Checklist	Description
Collection side	The variable has its current value in "Collection Configuration" or "Memory Calculation" and is normal.
Forwarding side	A real-time data, historical data, or custom SQL target is configured, enabled, and online.
Variable Range	The data forwarding group contains the variables to be queried; online filtering and sampling strategies do not exclude the data.
Time Range	The start and end times of historical queries cover the collection time, and confirm that the gateway time synchronization is normal.
Permissions	The current account has data query, export, and target access permissions.

Real-time Data

The Real-time Data tab queries the current records in a real-time data target.

Filters and tools

Control	Description
Forwarding target	Select real-time data target. Targets come from real-time data targets in data forwarding.
Variable ID	Multi-selection filtering by variable ID, supports remote variable search.
Auto-Refresh	After activation, data refreshes at set intervals, allowing pause or resume.
Refresh	Immediately reload data under the current query conditions.
Export	Export real-time data under the current query conditions.
Column Settings	Control Table Column Display.

Real-time data columns

Column	Description
Variable Name	Variable Name.
Device Name	The device name to which the variable belongs.
Variable ID	Unique variable ID.
Current Value	The current value saved in the target.
Online	Shows whether the variable is online.
Collection Time	Variable collection time.
Update Time	Real-time data target recording update time.

Historical Data

The Historical Data tab queries numeric values, strings, or custom SQL wide-table records.

Database Modes

The columns shown by a historical target depend on its database and physical model. Standard history tables use the common variable fields; custom SQL targets display the columns returned by the actual database table.

Database/mode	Query path	Typical columns	Custom SQL
SQL Server, MySQL, PostgreSQL, SQLite standard	Numeric or string history table	Device, variable, variable ID, value, collection time, online, record time, source epoch, source sequence, source node, and record key	-
SQL Server, MySQL, PostgreSQL, SQLite custom	Relational wide-table paging	Defined by template Columns	Supported
QuestDB standard	Native REST SQL	The common history fields	-
QuestDB custom	Native SQL wide table	Defined by template columns	Supported
TDengine standard	Native/WebSocket query	The common history fields	-
TDengine custom	Native SQL wide-table query	Defined by template columns	Supported
IoTDB Tree	Device-path and measurement query	The common history fields	Not supported
IoTDB Table standard	TIME, TAG, and FIELD table query	The common history fields	-
IoTDB Table custom	Table-model SQL/Tablet query	Defined by template columns	Supported

IoTDB Tree and Table are mutually exclusive physical models. Tree targets do not show the Custom SQL option; choose Table when a wide-table schema or custom statements are required.

Filters and tools

Control	Description
Forwarding target	Select a historical data target or custom SQL target.
Data type	A standard historical data target can query numeric or string data.
Time Range	Select the query start and end times.
Variable ID	Multi-select filter by variable ID. Custom SQL objectives do not display this filter.
Refresh	Reload historical data.
Export	Export historical data under the current query conditions.
Column settings	A standard historical data target can control the displayed columns.

Historical data columns

Column	Description
Table	View history in a table.
Chart	A standard historical data target can switch to chart view for trend curves.
Device Name	The device name to which the variable belongs.
Variable Name	Variable Name.
Variable ID	Unique variable ID.
Value	Historical record value.
Collection Time	Variable collection time.
Online	The online status corresponding to the history.
Creation time	History writing time.
Custom columns	A custom SQL target displays the target table's columns dynamically.

Count, Sorting, and Paging

• 50 items/page is only the current page size. The Total N indicator is the database count under the current filters.
• Standard mode stores one row per variable. Two variables in one cycle normally produce two rows; a custom wide table normally produces one grouped row, so totals are not expected to match mechanically.
• Sorting belongs to the current target. Switching targets clears the previous sort field and table sort state, so createTime is never sent to a wide table that only has event_time or time.
• To inspect the newest write, sort standard history by Record time descending. To inspect collection changes, sort by Collection time descending. Custom wide tables sort by their template time column descending.
• Paging is executed globally by the server. Cross-table count, sorting, distinct, and paging are not independently truncated per physical split table.

Time Zones

Time values fall into two categories: target storage wall-clock values and native UTC values.

Data type	Display rule
SQL Server, MySQL, PostgreSQL, SQLite, and TDengine standard/custom	Stored and displayed using the target Time-zone offset, for example +08:00 displays 17:42.
IoTDB and QuestDB standard	Native UTC is projected to the target time zone by the server; a +08:00 target displays 09:42Z as 17:42.
IoTDB and QuestDB wide tables	The Z suffix is retained to make UTC explicit. Do not add eight hours manually.

If collection time and record time differ substantially, check the sampling strategy, batch writing, and target time-zone configuration, then inspect the database's raw time column. The query page does not guess the meaning of an offset-free string from the browser time zone.

Query Steps

1. Go to "Data and Alerts → Data Query".
2. Switch between the "Live Data" or "Historical Data" tabs as needed.
3. Select the forwarding target.
4. Real-time data can select variable IDs and enable automatic refresh; Historical data should be selected by time range, data type, and variable ID.
5. Click Refresh to view the results.
6. Click Export when archiving is needed.

Verify the results

Query	Pass standard
Real-time data	The target, variable ID, current value, online state, and collection time match the same variable in Collection Configuration. The update time continues to change after refresh.
Historical data	Records appear in the selected time range, collection times are in the expected order, and the table values match the trend chart.
Custom SQL	The page shows the target table's actual columns, and key fields match the acceptance sample in the target database.
Export	The exported file opens and matches the current filters, variable range, and time range.

Records appearing on the page only confirms that the target contains data. For acceptance, compare one known field value across the collection page, target storage, and query result.

Usage Notes

Scenarios	Recommended
Target list is empty	First configure and enable a real-time or historical data target in “Development Configuration → Data Forwarding”.
No data on the page	Check whether the forwarding target is running, whether the variable range includes the target variable, and whether the time range is correct.
Real-time data does not refresh	Check whether automatic refresh is paused or manually refresh.
Historical data cannot be found	Confirm that historical data targets have been written to the data, and the query time range covers the collection time.
The count is only 50	50 items/page is the page size. Read the Total N indicator and check that no time range or variable filter is active.
Targets have different counts	Standard mode stores one row per variable while custom wide tables group values; compare the mode and sampling strategy before comparing totals.
The newest time does not move	Sort standard history by Record time descending. If the count grows while time is unchanged, inspect target and SQL logs for a query ordered by a fixed collection time.
The time is eight hours off	Check the target Time-zone offset and whether the database value ends in Z. A Z value is already UTC and must not be converted twice.
Charts do not show	Charts are only applicable to general historical data objectives; Custom SQL goals display only dynamic tables.
Large data output	Narrow the time range or variable range to avoid exporting too many records at once.

Troubleshooting

Phenomenon	Handling Recommendations
Forwarding Target Dropdown Empty	Check whether the data forwarding target type is real-time, historical, or custom SQL, and confirm that the target has been saved.
Variable ID cannot be found in search	Confirms the variable exists and that the current user has permission to view it.
Online state is unexpected	Return to “Collection Configuration” or “Memory Calculation” to view the variable status and error message.
Historical curve breakpoints	Check variable collection cycles, historical data sampling strategies, network status, and target cache.
Export failure	Narrow the query range and retry, then check the background logs in the system logs.
